Fully Automatic Cutting and Stripping Machine

1) Fully Automatic Wire Cutting Cum Stripping Machine Model No. CTSS 33
2) Fully Automatic Wire Cutting and Stripping Machine Model No. RAE - Ser - 1
* RAE- Ser -1+Twist (T)
* RAE- Ser -1+Slit (S)

Model No: CTSS 33

Fully Automatic Cutting & Stripping Machine

Fully Automatic Machine Suitable for cutting and Stripping of single core wires and Flat cables. Machine for wires From 0.2 to 2.5 Sq.mm, single core PVC insulated.

Benefits :

* Fully automatic machine.
* Auto Setting as well as Auto Running.
* High Quality + High Output
* At Low cost
* Small in size
* Saves Labour and
* Reduces copper wastage
* Separate 'power & control' panel to suit hot & humid weather conditions.

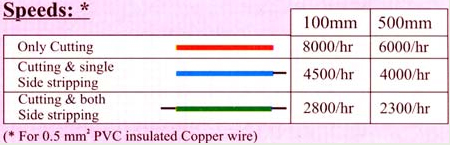

Performance Range :-

Length Selection	50mm to 25meters in steps of 1mm(Smaller length option available)
Accuracy	+/- 2mm OR +/- 0.2 % depending upon wire Length
End Stripping	2mm~ 35 mm
Wire Cross section	0.2 to 2.5 Sq.mm Flat Cable: 0.5 Sq.mm.
Wire Types	Single core with single or multiple strands
Max. Wire programs	65 (PLC control) 10,000 (PC controls)
Changeover setting time	5 sec max (Digital Setting)

Technical Data :-

Mechanical system	Small machine with no-maintenance, precision mechanical system
Electronic system	PLC Control OR optional pc controle
Wire feed system	2 stepping motors with 4 feed rollers, variable speed
Cutting & Stripping system	V blade pair with stepping motor, variable speed and PC/Microprocessor Controlled strokes
Length Measurement system	Directly by stepping motor control
Power	220V / 50 Hz, other options upon request
Compressed air	(5 to 7 bar, 70 to100 psi),
Size of the main machine	400mm(L) x 260mm(H) x 440mm(D)

------------------------------------------------------------------------------------------------------------------------------------------------------

Model No: RAE - Ser - 1

Fully Automatic Machine Suitable for cutting and Stripping of single core wires and Flat cables. Machine for wires from 0.2 to 6 Sq.mm, single core PVC insulated.

Benefits :

* Fully automatic machine.
* Auto Setting as well as Auto Running.
* High Quality + High Output
* At Low cost
* Small in size
* Saves Labour and
* Reduces copper wastage
* Machine and the panel in single housing

Performance Range :-

Length Selection	50mm to 9.9meters in steps of 1mm(Smaller length option available)
Accuracy	+/- 2mm OR +/- 0.2 % depending upon wire Length
End Stripping	2mm~ 30 mm
Wire Cross section	0.2 to 6 Sq.mm,(2wires)
Wire Types	Single core with single or multiple strands
Max. Wire programs	65 (PLC control) 10,000 (PC controls)
Changeover setting time	5 sec max (Digital Setting)

Speeds	100mm	500mm
Only Cutting	12000/hr	10000/hr
Cutting and Single Side Stripping	11000/hr	10500/hr
Cutting and Both Side Stripping	10000/hr	8000/hr

Technical Data :-

Mechanical system	Small machine with no-maintenance, precision mechanical system
Electronic system	PLC Control OR optional pc controle
Wire feed system	2 Servo motors with 4 feed rollers, variable speed
Cutting & Stripping system	V blade pair with Servo motor, variable speed with PLC or PC controlled strokes
Length Measurement system	Directly by Servo motor control
Power	220V / 50 Hz, other options upon request
Compressed air	(5 to 7 bar, 70 to100 psi),
Size of the main machine	500mm(L) x 335mm(H) x 620mm(D)
